Lab 7 - Zero Trust

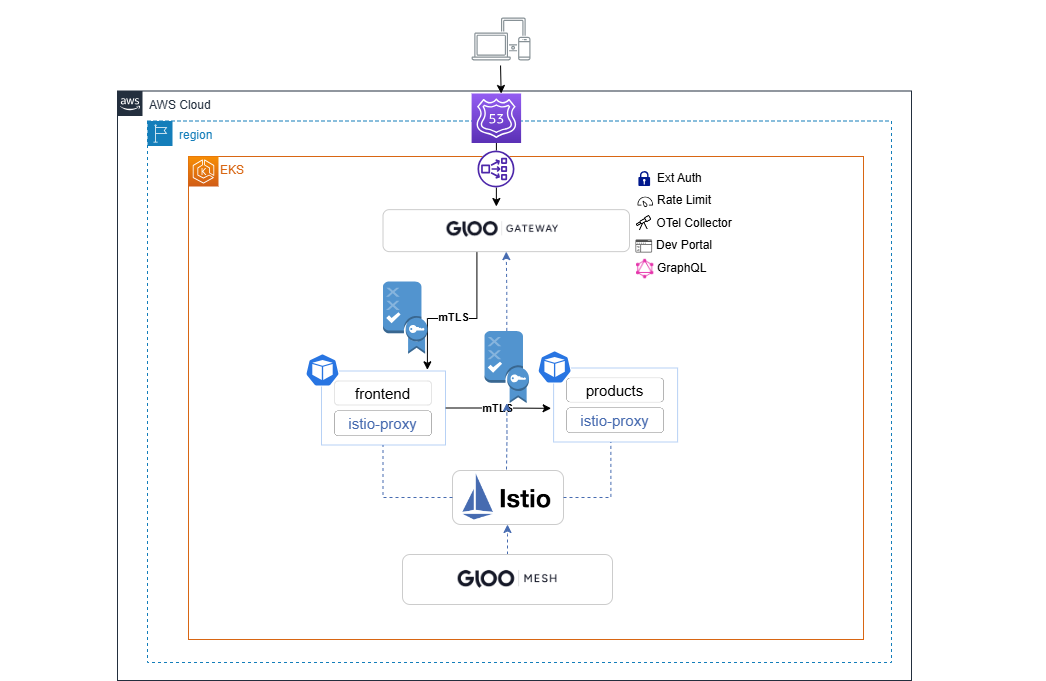

Gloo Platform EKS Workshop Architecture Lab 7

Let’s enforce a Zero Trust networking approach where all inbound traffic to any applications is denied by default.

  1. Add a default deny-all policy to the backend-apis-team workspace:

    cat << EOF | kubectl apply -f -
apiVersion: security.policy.gloo.solo.io/v2
kind: AccessPolicy
metadata:
  name: allow-nothing
  namespace: online-boutique
spec:
  applyToWorkloads:
  - selector:
      namespace: online-boutique
  config:
    authn:
      tlsMode: STRICT
    authz: {}
EOF

  2. Refresh the Online Boutique webpage (echo http://$GLOO_GATEWAY). You should see an error with message “RBAC: access denied”

  3. Add AccessPolicy to explicitly allow traffic between the gateway and the frontend application:

    kubectl apply -f - <<EOF
apiVersion: security.policy.gloo.solo.io/v2
kind: AccessPolicy
metadata:
  name: frontend-api-access
  namespace: online-boutique
spec:
  applyToDestinations:
  - selector:
      labels:
        app: frontend
  config:
    authz:
      allowedClients:
      - serviceAccountSelector:
          labels:
            app: istio-ingressgateway
          namespace: gloo-mesh-gateways
EOF

  4. Add AccessPolicy to explicitly allow traffic between the microservices online-boutique workspace. As you can see, these policies can be very flexible.

    kubectl apply -f - <<EOF
apiVersion: security.policy.gloo.solo.io/v2
kind: AccessPolicy
metadata:
  name: in-namespace-access
  namespace: online-boutique
spec:
  applyToDestinations:
  - selector:
      namespace: online-boutique
  config:
    authz:
      allowedClients:
      - serviceAccountSelector:
          namespace: online-boutique
EOF

  5. Refresh the page (echo http://$GLOO_GATEWAY) again. You should get the store home page back.

In this lab, we effectively implemented a Zero Trust network security model, where we began by denying all inbound traffic by default. Through careful configuration of AccessPolicy rules, we selectively allowed necessary communication between the gateway, the frontend, and other microservices within the online-boutique workspace. This approach not only bolstered our network’s security but also demonstrated the practicality and flexibility of Zero Trust principles in a cloud-native ecosystem.
