Lab 6 - AI API Key Handling

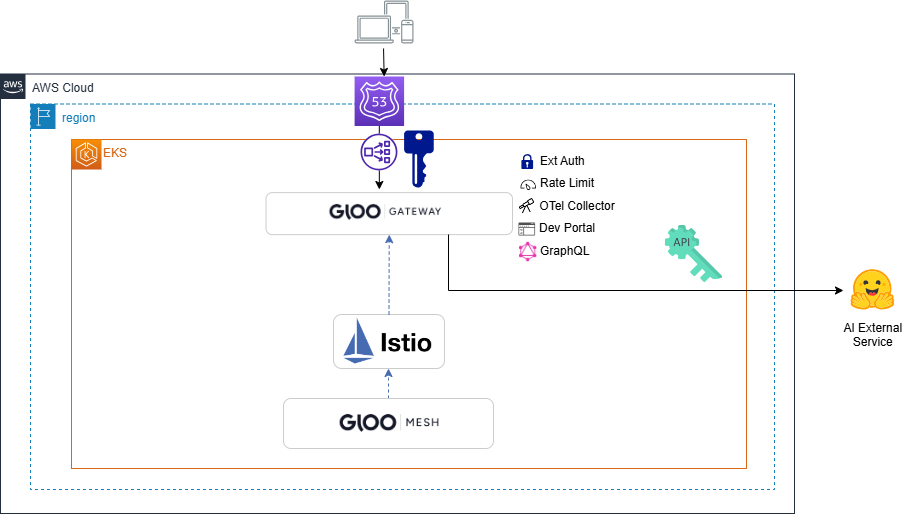

Gloo Platform EKS Workshop Architecture Lab 6

In this lab, we will apply the concepts from “Lab 5 - Authentication / API Key” to the AI API service created in “Lab 4 - AI Integration”. This workflow allows for automatic and secure control of the API Token without user interaction with the key, while still protecting the use of the key with user credentials.

  1. Define ExtAuthPolicy to Require User Credentials for Endpoint Access:

    kubectl apply -f - <<'EOF'
apiVersion: security.policy.gloo.solo.io/v2
kind: ExtAuthPolicy
metadata:
  name: huggingface-apikey
  namespace: gloo-mesh-gateways
spec:
  applyToRoutes:
    - route:
        labels:
          route: huggingface
  config:
    server:
      name: ext-auth-server
      namespace: gloo-mesh-gateways
      cluster: cluster-1
    glooAuth:
      configs:
      - apiKeyAuth:
          headerName: api-key
          k8sSecretApikeyStorage:
            labelSelector:
              api-key: api-huggingface
EOF

  2. Define User Credentials as a Kubernetes Secret:

    For demonstration purposes, user credentials are defined as a Kubernetes secret. In production, external key repositories and vaults should be used.

    kubectl apply -f - <<'EOF'
apiVersion: v1
kind: Secret
metadata:
  name: api-huggingface-key
  labels:
    api-key: api-huggingface
type: extauth.solo.io/apikey
data:
  api-key: bXlzZWNyZXRrZXk= # Base64 encoded value "mysecretkey"
EOF

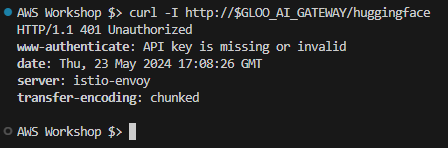

  3. Confirm Denied Access Without Credentials:

    Verify that access to the service is denied when credentials are not provided.

    curl -I http://$GLOO_AI_GATEWAY/huggingface

    Expected Output

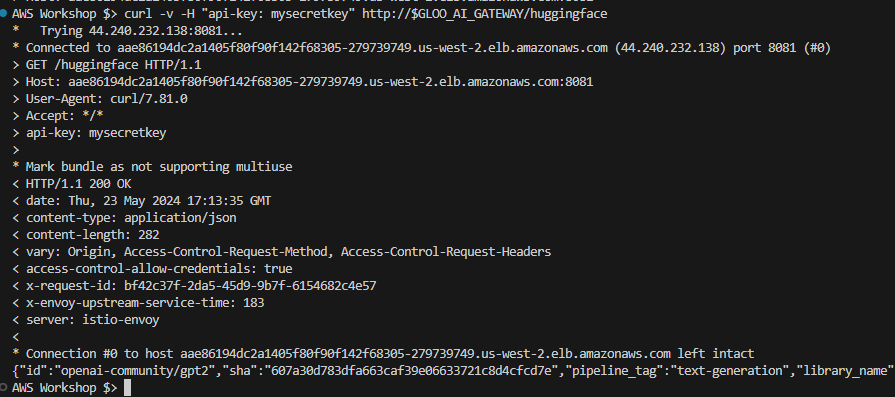

  4. Confirm Access with Correct api-key:

    Verify that the correct api-key works.

    curl -v -H "api-key: mysecretkey" http://$GLOO_AI_GATEWAY/huggingface

    Expected Output

  5. Transfer Hugging Face API Token to Existing Secret:

    Transfer the Hugging Face API Token, currently stored as an environmental variable, to the existing secret that already has user credentials.

    kubectl patch secret api-huggingface-key \
--type=json \
-p='[{"op": "add", "path": "/data/huggingface-api-key", "value": "'$(echo -n $HF_API_TOKEN | base64)'"}]'

  6. Update Auth Policy with API Token Location:

    Update the ExtAuthPolicy to define the API Token location.

    kubectl patch extauthpolicy huggingface-apikey \
-n gloo-mesh-gateways \
--type=json \
-p='[{"op": "add", "path": "/spec/config/glooAuth/configs/0/apiKeyAuth/headersFromMetadataEntry", "value": {"x-api-key": {"name": "huggingface-api-key"}}}]'

  7. Define TransformationPolicy to Add API Token to Request:

    Instruct Gloo Mesh to add the API Token to the request by defining a TransformationPolicy.

    kubectl apply -f - <<'EOF'
apiVersion: trafficcontrol.policy.gloo.solo.io/v2
kind: TransformationPolicy
metadata:
  name: huggingface-transformations
spec:
  applyToRoutes:
  - route:
      labels:
        route: huggingface
  config:
    request:
      injaTemplate:
        headers:
          Authorization:
            text: 'Bearer {{ huggingface-api-key }}'
        extractors:
          huggingface-api-key:
            header: 'x-api-key'
            regex: '.*'
EOF

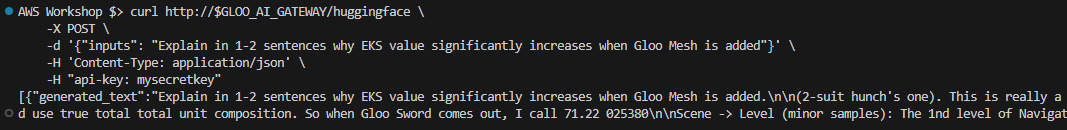

  8. Test the Setup:

    Test the setup by providing user credentials and receiving a response from the AI upstream service, with the proper API Token provided by Gloo Mesh based on the configuration defined in this lab.

    curl http://$GLOO_AI_GATEWAY/huggingface \
    -X POST \
    -d '{"inputs": "Explain in 1-2 sentences why EKS value significantly increases when Gloo Mesh is added"}' \
    -H 'Content-Type: application/json' \
    -H "api-key: mysecretkey"

    Expected Output

    Note: The response in the screenshot is generated using a free model from Hugging Face. While it may offer amusing and sometimes whimsical outputs, it’s worth noting that for more precise and insightful results, services like OpenAI’s GPT models are a better choice. The configuration process is similar, although OpenAI’s service comes at a cost. Remember, even AI has its budget options—and they come with their quirks!

In this lab, we have effectively integrated secure API key handling for AI services within the Gloo Platform on EKS. By implementing authentication policies and leveraging Kubernetes secrets, we’ve ensured that sensitive AI API tokens are managed securely and automatically. This lab demonstrated how to streamline access to powerful AI capabilities, such as those provided by Hugging Face, without exposing API keys directly to users.

The transformation policy we defined allows Gloo Mesh to handle the token insertion dynamically, ensuring seamless communication with AI services. These practices are crucial for maintaining robust security while leveraging AI and LLM services in modern applications. The skills acquired here will be instrumental in managing secure and efficient access to AI services, enabling you to build intelligent, AI-powered microservices architectures with confidence.
