Lab 5 - Authentication / API Key

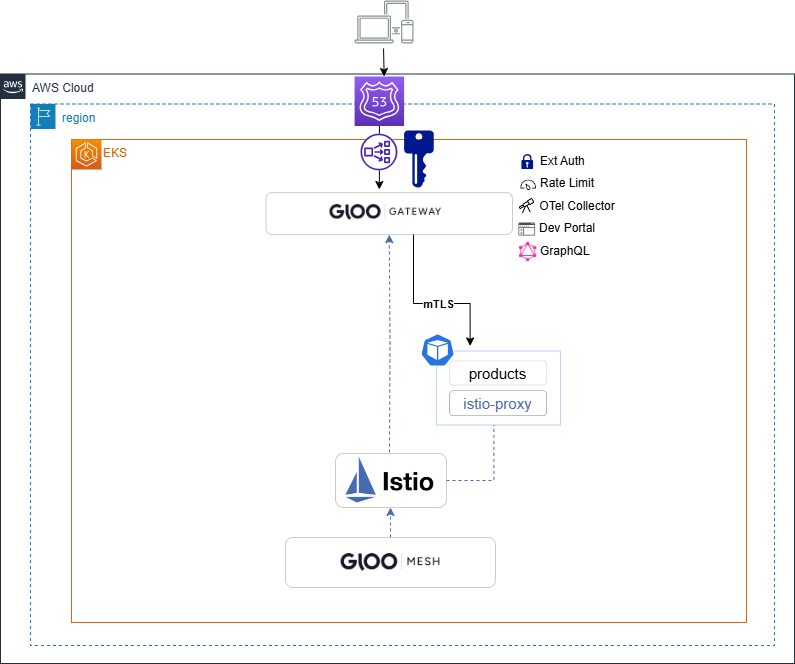

Gloo Platform EKS Workshop Architecture Lab 5

API key authentication is one of the easiest forms of authentication to implement. Simply create a Kubernetes secret that contains the key and reference it from the ExtAuthPolicy. It is recommended to label the secrets so that multiple can be selected and more can be added later. You can select any header to validate against.

  1. Create two secrets that Gloo will validate against. One with the api-key admin and the other developer.

    kubectl apply -f - <<EOF
apiVersion: v1
kind: Secret
metadata:
  name: solo-admin
  namespace: gloo-mesh-gateways
  labels:
    api-keyset: httpbin-users
type: extauth.solo.io/apikey
data:
  api-key: $(echo -n "admin" | base64)
---
apiVersion: v1
kind: Secret
metadata:
  name: solo-developer
  namespace: gloo-mesh-gateways
  labels:
    api-keyset: httpbin-users
type: extauth.solo.io/apikey
data:
  api-key: $(echo -n "developer" | base64)
EOF

  2. Create the API key ExtAuthPolicy that will match header x-api-key values againt the secrets created above. The ExtAuthServer resource configures where authorization checks will be performed:

    kubectl apply -f - <<EOF
apiVersion: admin.gloo.solo.io/v2
kind: ExtAuthServer
metadata:
  name: ext-auth-server
  namespace: gloo-mesh-gateways
spec:
  destinationServer:
    ref:
      cluster: cluster-1
      name: ext-auth-service
      namespace: gloo-mesh
    port:
      name: grpc
---
apiVersion: security.policy.gloo.solo.io/v2
kind: ExtAuthPolicy
metadata:
  name: products-apikey
  namespace: gloo-mesh-gateways
spec:
  applyToRoutes:
  - route:
      labels:
        route: products
  config:
    server:
      name: ext-auth-server
      namespace: gloo-mesh-gateways
      cluster: cluster-1
    glooAuth:
      configs:
      - apiKeyAuth:
          headerName: x-api-key
          labelSelector:
            api-keyset: httpbin-users
EOF

  3. Call httpbin without an api key and you will get a 401 unauthorized message:

    curl -i http://$GLOO_GATEWAY/products

  4. Call httpbin with the developer api key x-api-key: developer:

    curl -H "x-api-key: developer" http://$GLOO_GATEWAY/products

  5. Call httpbin with the admin api key x-api-key: admin:

    curl -H "x-api-key: admin" http://$GLOO_GATEWAY/products

The expected results of the executed commands are illustrated in the screenshot below:

Expected Output

In this lab, we’ve taken significant steps in enhancing the security of our application by implementing API key authentication. By creating Kubernetes secrets for different user roles and setting up the ExtAuthPolicy, we’ve established a reliable method to secure and manage access to our services. This lab has not only highlighted the ease of setting up basic authentication but also emphasized the importance of robust security practices in microservices architectures.

As we move forward, the concepts and skills we’ve acquired here will be crucial in understanding and implementing more comprehensive security strategies.
